Uses the industry standard layout, editing, and control software, LightBurn, to ‘talk’ directly to your laser without the use of additional software.

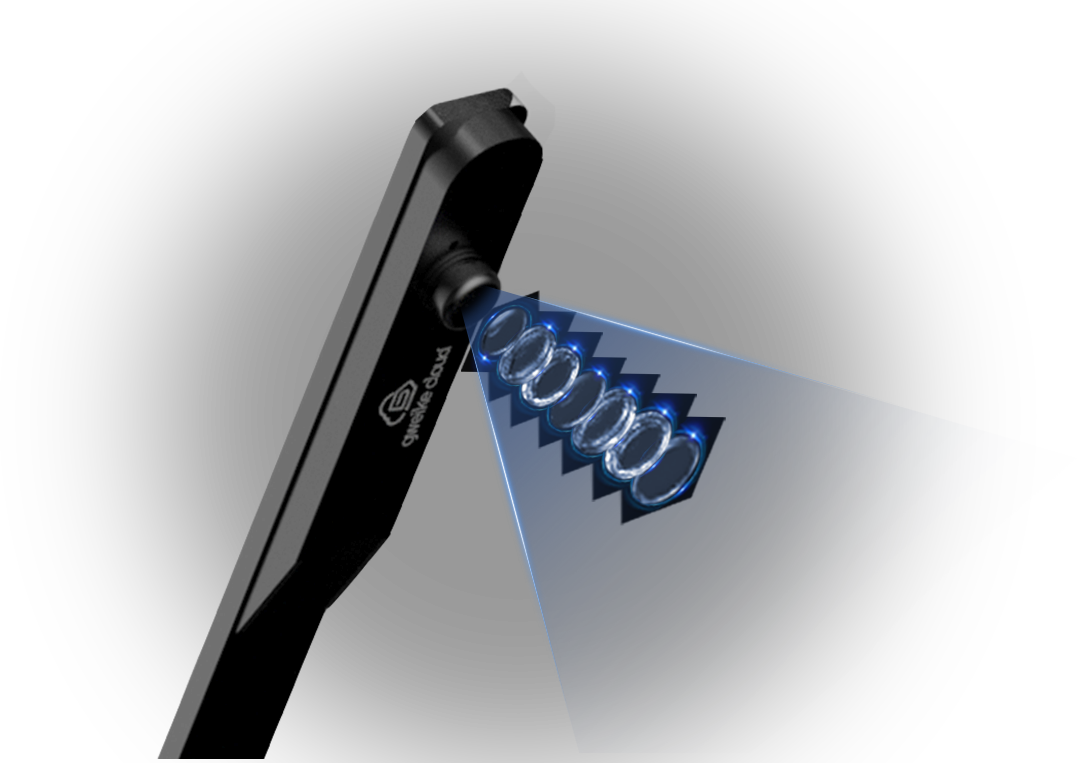

Adopt 5mp wide-angle camera to precisely locate the position of the design on the material, monitor the working condition of the machine in real time intelligently extract the pattern from the surface of any object, and cut or engrave out the recognized pattern.
Effective laser Lens Protection / Neat Clear Cutting / Super Noisecancellng / Noise reduction by 20dB
Boost production speed by optimizing process temperatures.
Energy Savings & Quiet Operation.

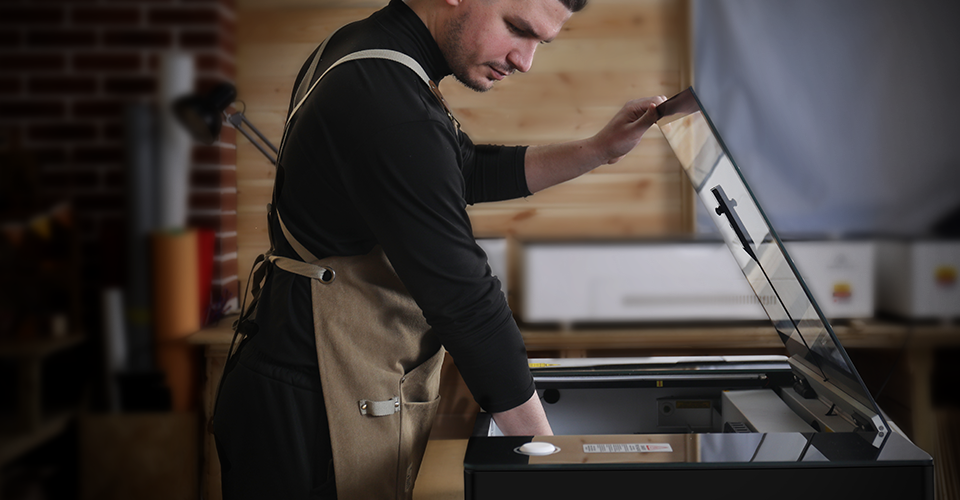

Adopt fully enclosed structural design to give users the best protection. Products are CE-certified, FCC-certified, FDA-certified, all electronic components comply with 3C standard
Easy installation and ready to use right out of the box. Only need connect the power cord and turn on the power, you can start creating right away.
Laser Power 50W

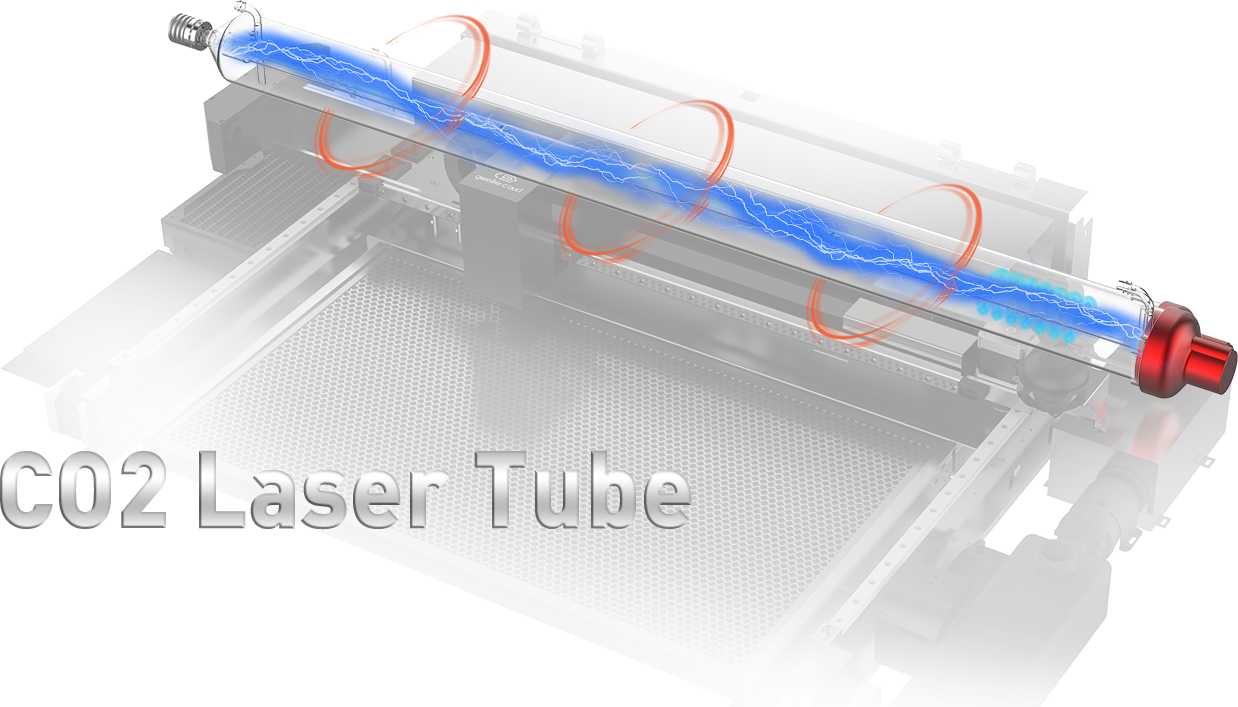

Laser Type CO₂ Glass Laser Tube
Lifespan 10000h
Safety Guard Class I (FDA Certified)
Work Table Area 20.08" (510mm)*11.8" (300mm)
Max. Workpiece Height(without honeycomb tray) 2''（51mm)
Work Table Surface Black (Special surface finishing technique helps reduce burn marks or discoloration)

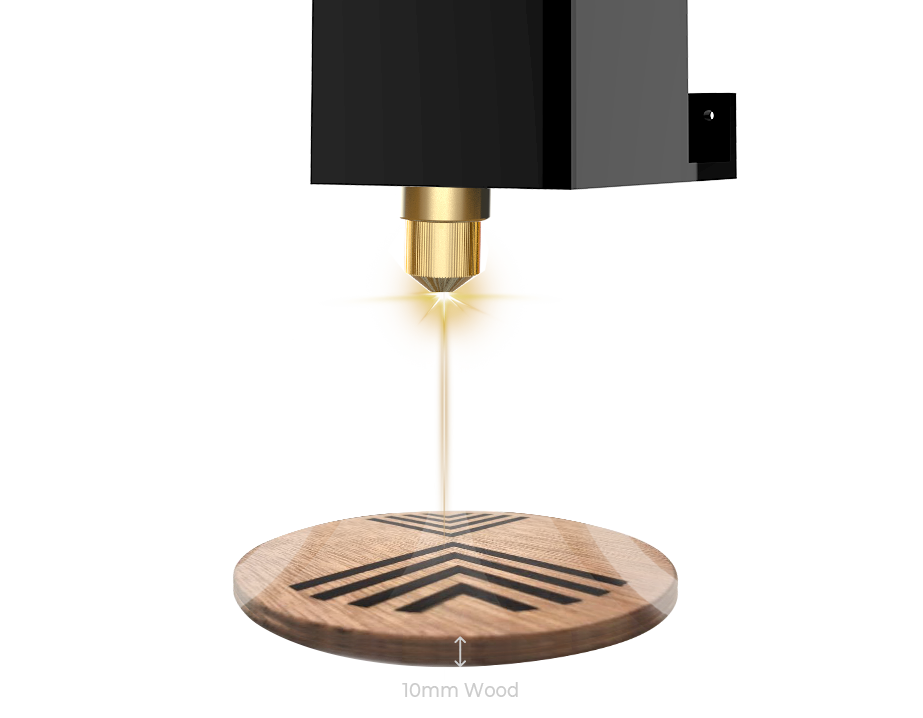

Max. Cutting Depth 0.59''（15mm） Basswood
Max. Carving Speed 600mm/s
Carving Precision 0.001" (0.025mm)
Noise Rating ≤70dB
Focus Mode AI Visual AF/Material Recognition AF/Material Set-up AF
Camera High-resolution Ultra-wide Camera
Number of Pixels (Effective) 5MP
Visible Area 19.29'' x 11.42''
Positioning AI Visual Positioning Error range ≤ 2mm
Operating Systems Windows/macOS
Control Software RDWorks(provided); LightBurn(supported)
Connection / Transmission USB, Ethernet
Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.
Power AC 110-220V±10%,50-60Hz
Work Consumption (without fan) 550W
Nonoperating Temperature 0~45°C
Relative Humidity 5~90°C
Operating Ambient Temperature 0~35°C
Processing Area 20.08" (510mm)*11.8" (300mm)
Machine Dimensions 38.2"*22.2"*9.2" (970mm*565mm*234.5mm)
Weight 42.6kg
Cameras: 5 MP ultra-wide-angle camera wide angle & macro √

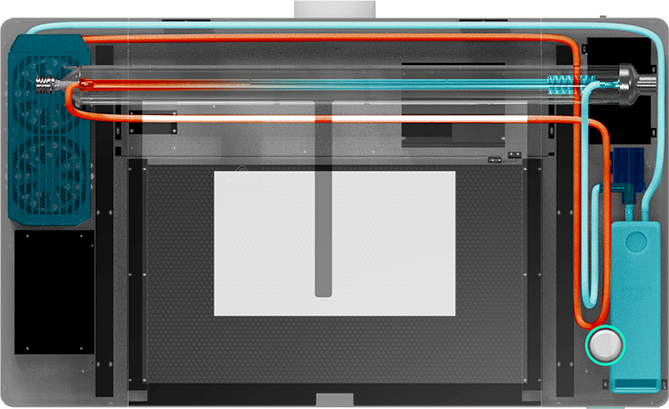

Water Chiller √
Dual high-efficiency internal LED strips √
