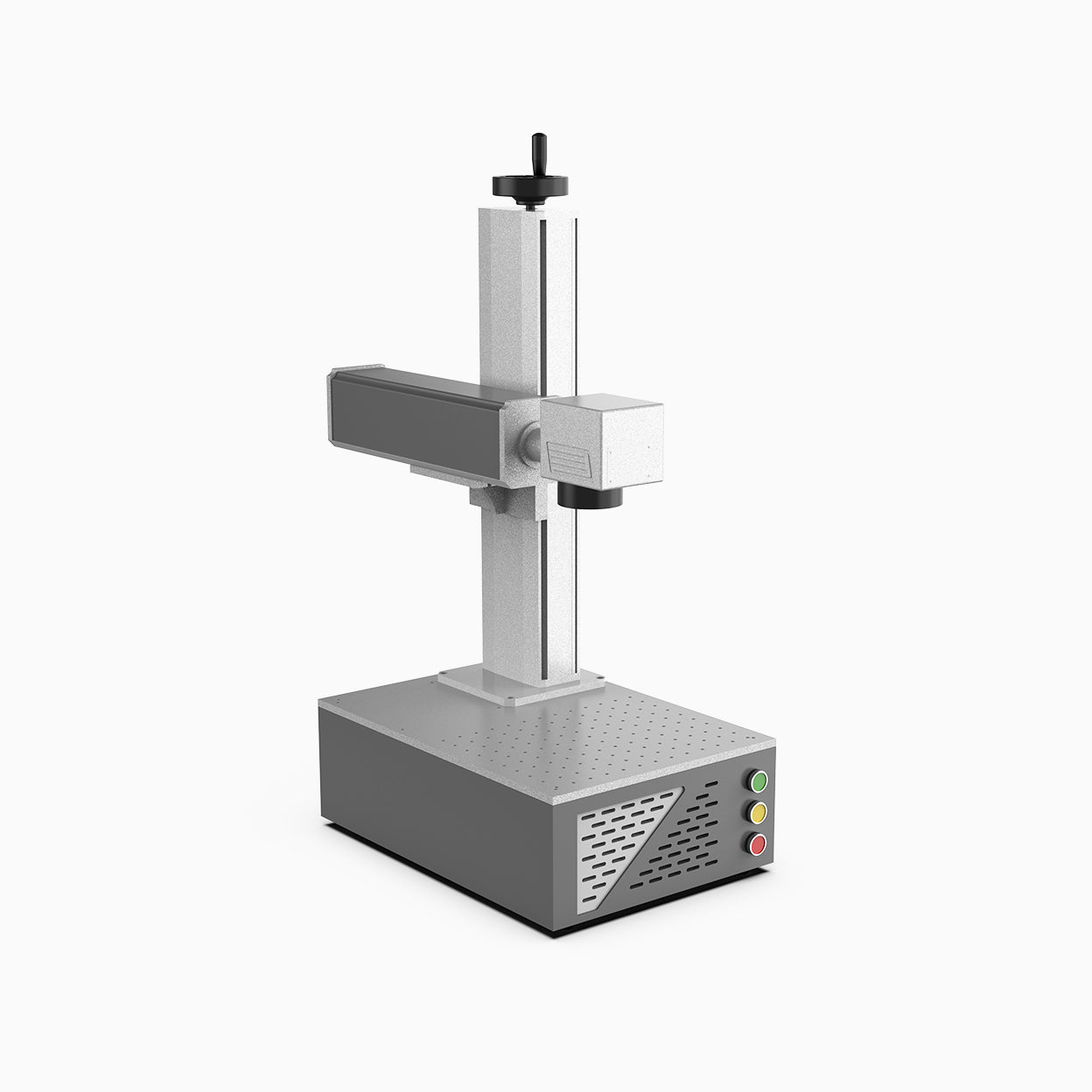

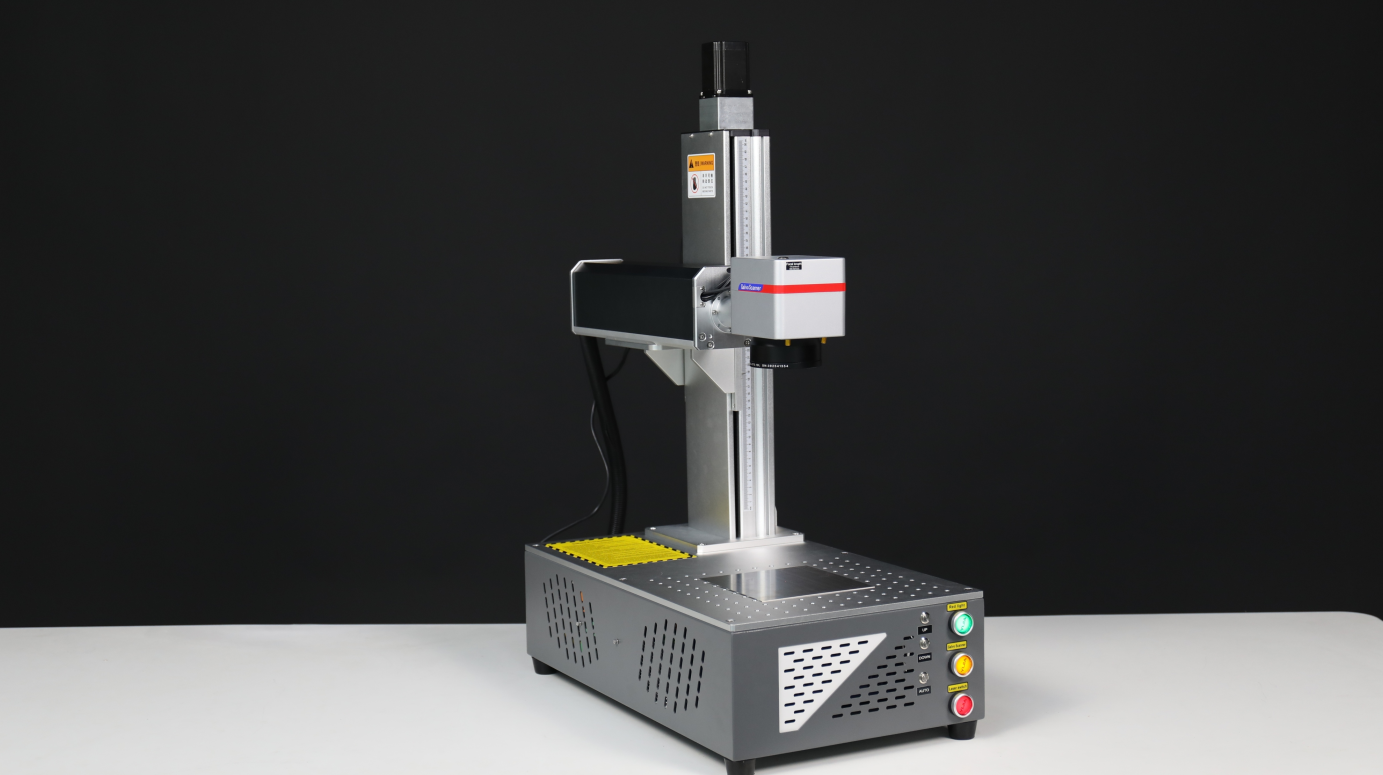

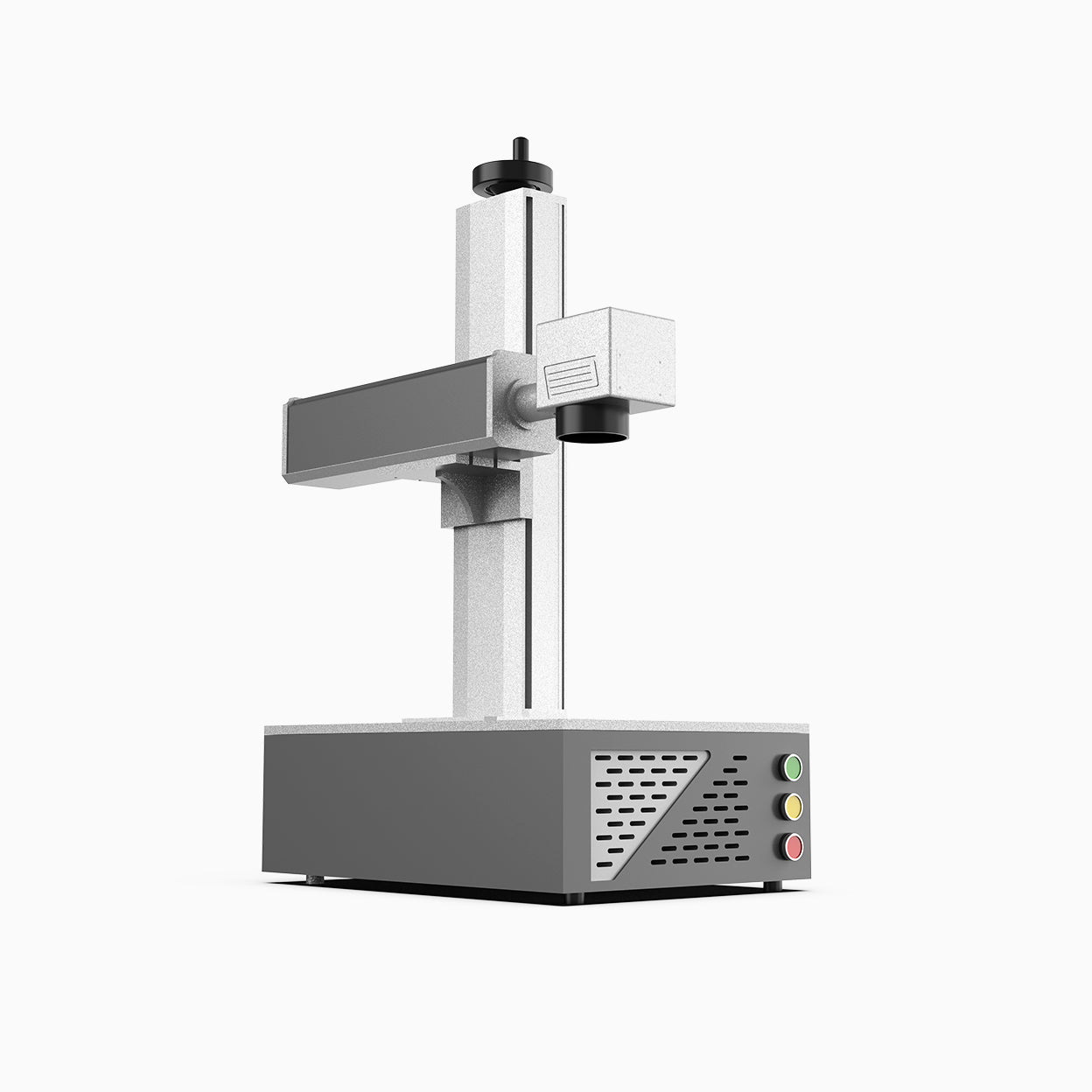

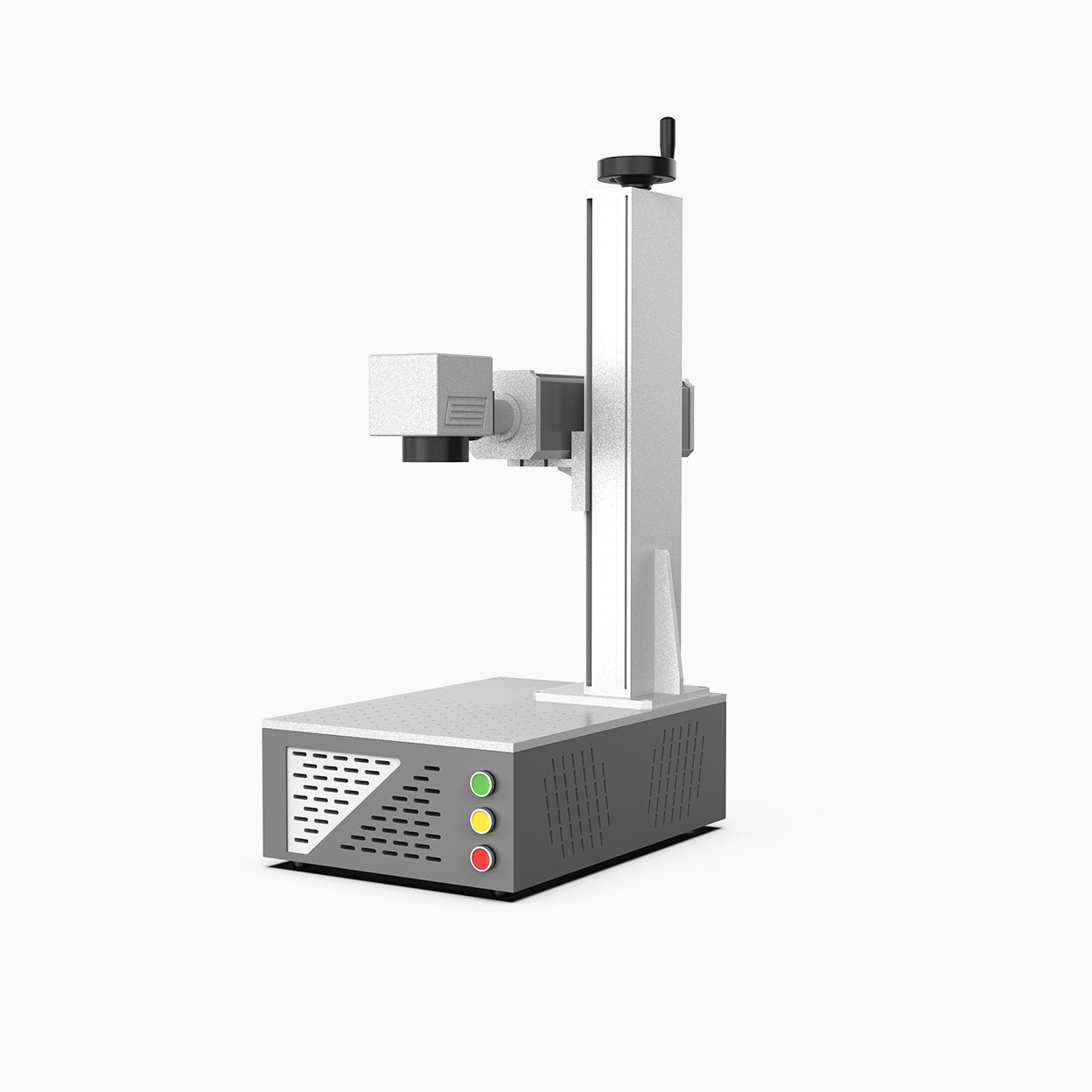

G6 MOPA 30W/60W/100W Fiber Laser
Marking & Engraving Machine
-Extraordinary working stability
-Excellent laser beam output
-Fast engraving speed, up to 10000mm/s

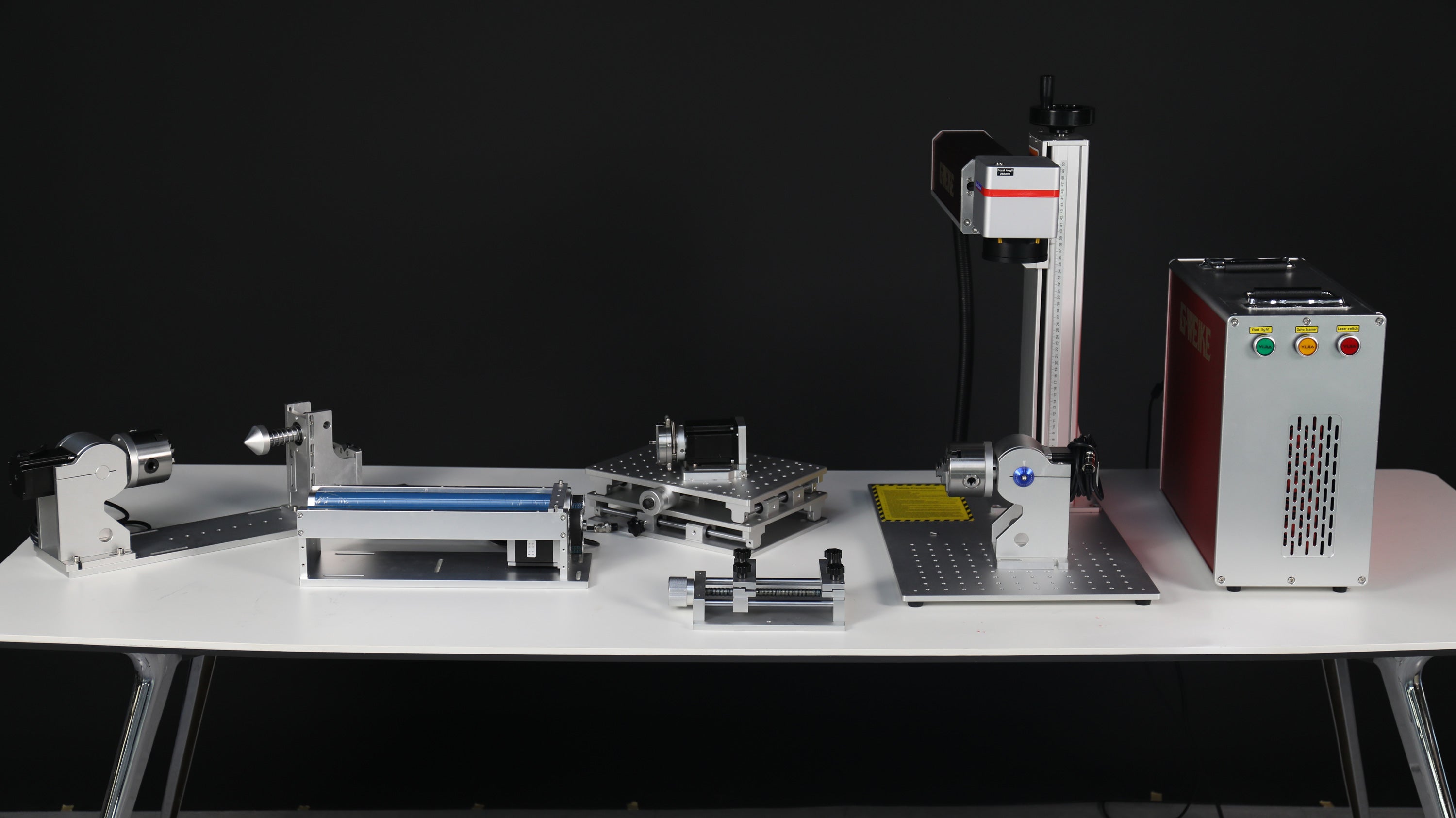

-Rotating engraving
-Multi galvanometer compatibility
-Support auto focus

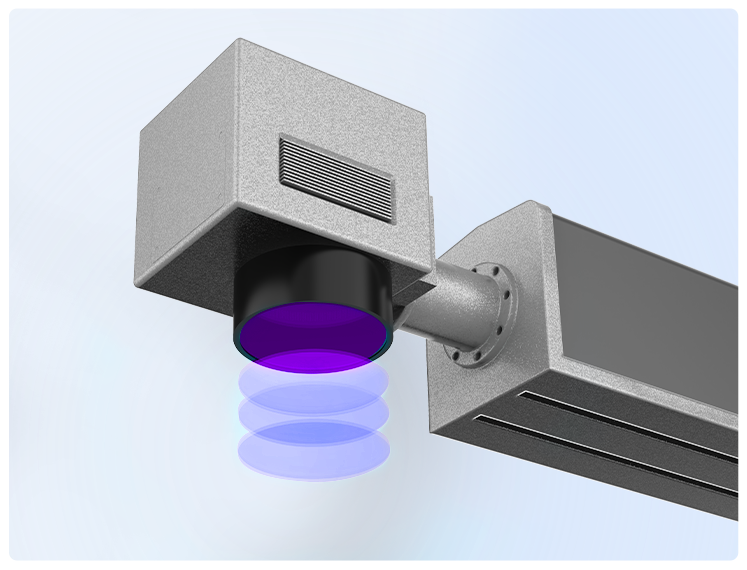

-High speed galvanometer scanning
-Adopting SCANLAB technology, digital signal
-Higher precision and speed
| Laser Power | 30W/60W/100W |
| Laser Wavelength | 1064nm |
| Q-frequency | 1-4000khz |
| Pulse Width | 2-350ns |
| Divergence | 0.3mard |
| Marking Range | 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm |
| Minimum Character | 0.1mm |
| Minimum Line Width | 0.01mm |
| Minimum Depth | 0-1mm(Depending on the materials) |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.001mm |
| Beam Quality | M2:1.2-1.8 |
| Operating System | Windows, MacOS, and Linux |
| Graphic Format Supported | BMP,JPG,GIF,PNG,TIF,AI,DXF,DST,PLT,etc. |
| Working Voltage | 110-220V/50Hz |
| Unit Power | <0.5kw |
| Working Environment Required | Clean and dust free or dust less |
| Laser Module Lifespan | >100000 hrs |

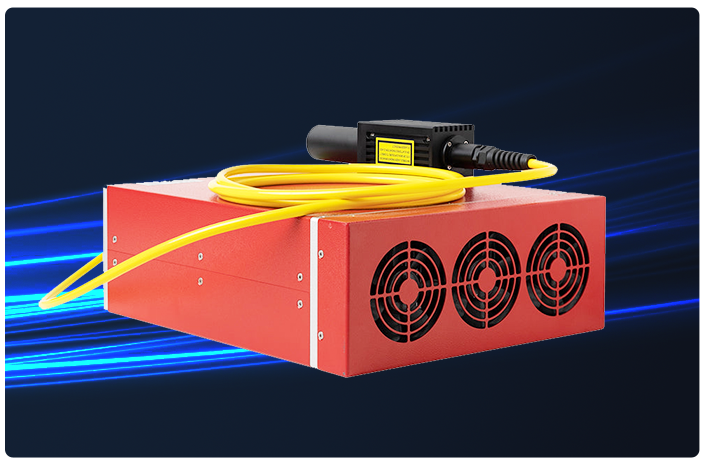

| Laser Source | JPT |
| Laser head | Sino-galvo |
| F-thete Lens | wavelength |
| Control | EZCAD2 |
